Outdoor Raspberry Pi Setup: Complete Guide to Off-Grid Projects

I was curious about how to run a Raspberry Pi outdoors, so I did some research. If you’re thinking about trying it, or you’ve already run into problems like weak Wi-Fi or batteries that don’t last, this guide brings together the best tips I found.

A Raspberry Pi can run outdoors and off-grid by choosing a low-power model, measuring real power draw, adding a suitable battery or UPS, sizing an adequate solar panel array, using a reliable network option, and protecting it all with weatherproof housing.

If you want to avoid the same mistakes and build something that actually works outdoors, stick with me. I’ll walk you through each step, share what worked for me, and help you pick the right parts so your project can run for months without you babysitting it.

If you’re new to Raspberry Pi or Linux, I’ve got something that can help you right away!
Download my free Linux commands cheat sheet – it’s a quick reference guide with all the essential commands you’ll need to get things done on your Raspberry Pi. Click here to get it for free!

Step 1: Choosing the Right Raspberry Pi Model for Outdoor/Off-Grid Use

When starting an Outdoor/Off-Grid project, the first and most important consideration is how to power the system. When you’re indoors, it’s as simple as plugging the power supply into a power strip. However, when you’re outdoors, you often don’t have a wall outlet.

Furthermore, different Raspberry Pi Models draw different amounts of power. Therefore, it’s crucial to select the Raspberry Pi Model for your project carefully.

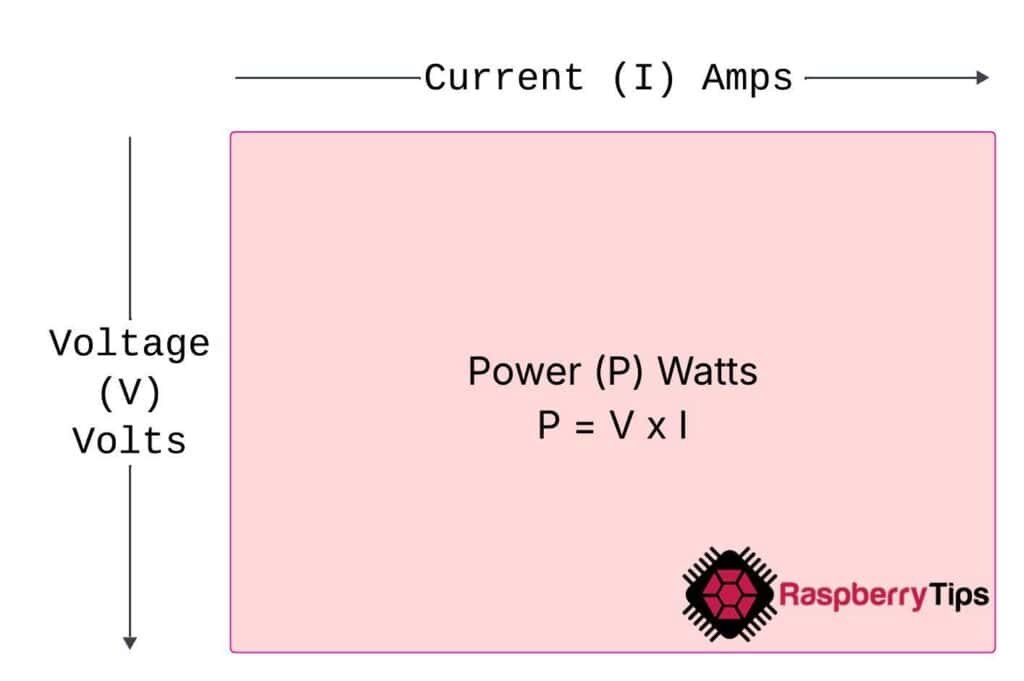

Traditionally, power is measured in Watts, which is the product of Current and Voltage. However, since the Raspberry Pi is typically powered by a constant 5 Volts, it makes more sense to calculate the current draw (i.e., Amps).

Different Raspberry Pi models have different current draws. Furthermore, the current draw varies with the state of processing; i.e., if the Raspberry Pi is idle, it draws less current than when it is under full load.

Using the official documentation and benchmarks from the Raspberry Pi Dramble team, I have compiled a table to give a quick overview of each Raspberry Pi model’s current power draw.

Model	Official Documentation		Dramble Benchmarks
	Recommended PSU Current	Typical Bareboard Active Current	Idle	Full Load
Raspberry Pi 5	5 Amp	800 mA	N/A	N/A
Raspberry Pi 4B	3 Amp	600 mA	540 mA	1280 mA
Raspberry Pi 3B+	2.5 Amp	500 mA	350 mA	980 mA
Raspberry Pi 3B	2.5 Amp	400 mA	260 mA	730 mA
Raspberry Pi 2B	1.8 Amp	350 mA	220 mA	400 mA
Raspberry Pi Zero 2 W	2 Amp	350 mA	100 mA 120 mA (WiFi)	N/A
Raspberry Pi Zero W	1.2 Amp	150 mA	120 mA	N/A
Raspberry Pi Zero	1.2 Amp	100 mA	80 mA	N/A

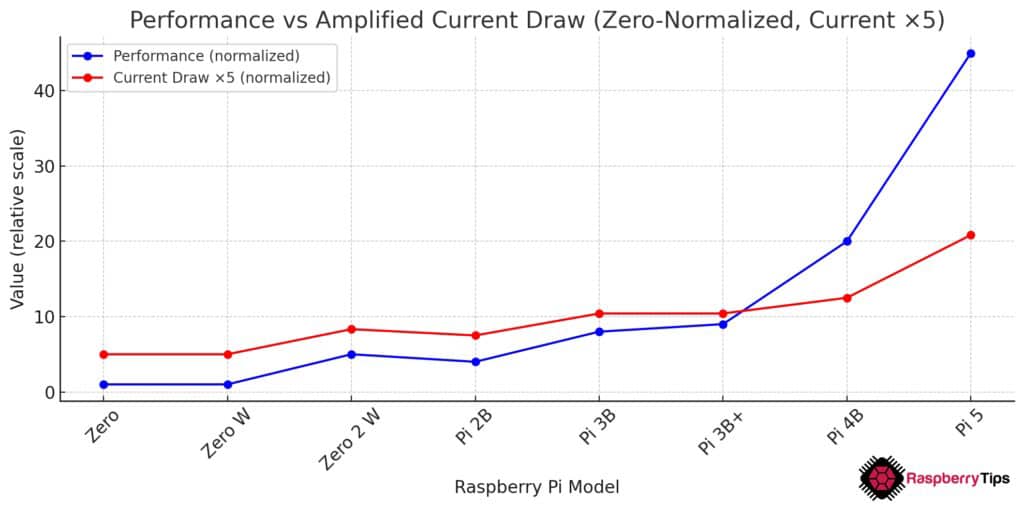

We can go one step further and compare the performance of different Raspberry Pi models. For this, I searched for multiple official, community-provided, and third-party CPU-centric benchmarks (e.g., Geekbench and Sysbench), and averaged them.

Also, I collected the available current-draw statistics and averaged them. Finally, I plotted my data for comparison with reference to the current draw and performance of the Raspberry Pi Zero.

As you can see, recent Raspberry Pi models offer greater processing power. However, these Raspberry Pi models also require a higher current draw. The Raspberry Pi Zero boards provide a good, power-efficient middle ground that is most economical from a current-draw perspective.

For most Outdoor/Off-Grid scenarios, I would recommend the Raspberry Pi Zero line, as these are the most power-efficient models.

However, suppose your application requires greater processing power. In that case, you can opt for the Raspberry Pi 5 or Raspberry Pi 4B, as these models offer the most significant performance boost.

Step 2: Estimate Your Project’s Power Requirements

Before we can proceed with designing our power solution, we need to estimate or calculate the entire project’s current draw. The current draw values we discussed above were only for the Raspberry Pi itself.

However, the configuration of the Raspberry Pi, such as with or without HDMI enabled, with or without Wi-Fi, and the components that you attach to your Raspberry Pi, such as a camera module, have a significant impact on the overall current draw.

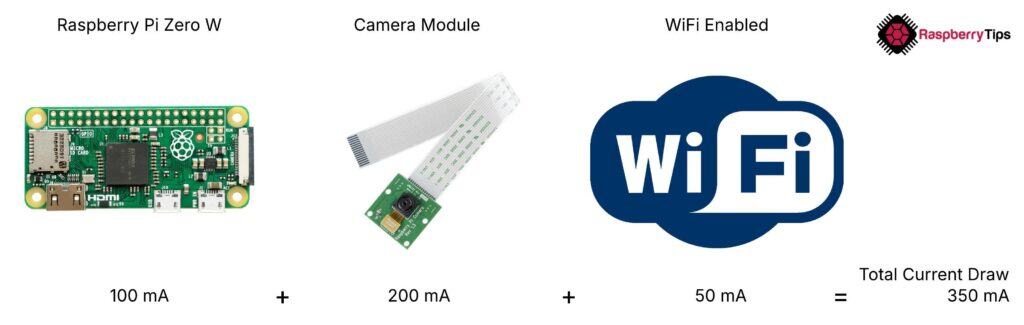

To approximate the total power draw, add the Raspberry Pi’s current draw to the current draw of each module or component connected to it. The exact current draw of each module can usually be found in the OEM technical documentation.

Approximate values for commonly used components/ modules are as follows:

• Raspberry Pi Camera Module V1/ V2: 200 – 250 mA
• IR Camera: 250 – 300 mA
• WiFi enabled: 50 – 150 mA
• USB WiFi adapter: 80 – 250 mA
• 4G/ LTE USB modem: 500 – 1000 mA
• Bluetooth: 10 – 40 mA
• 30mm Fan: 80 – 150 mA
• PIR Motion Sensor: 50 – 80 mA

These are approximate values only; actual values may differ significantly.

Also, keep in mind that not everything draws the same amount of current at all times. For example, as we previously discussed, the Raspberry Pi draws less current when idle and more when running under full load.

Similarly, not all sensors or modules operate continuously at full load. This can also be optimized in your program. For example, let us say you have attached a camera module to your Raspberry Pi for some surveillance use case.

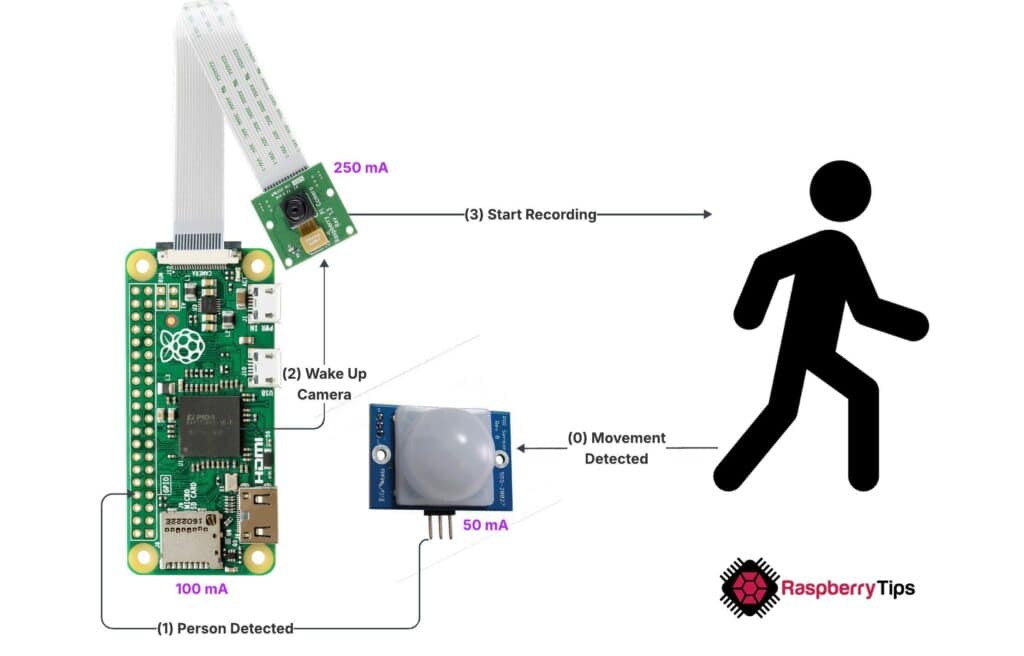

Keeping the camera switched on at all times will significantly increase the average current draw of our system. Alternatively, you could use a PIR motion sensor for initial detection and to decide when to turn on the camera.

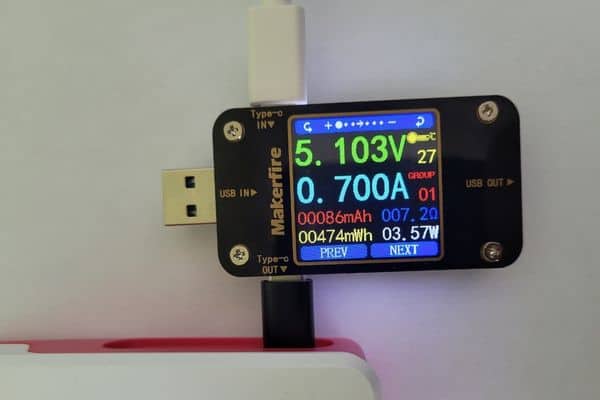

You can consult this guide to figure out how to monitor your Raspberry Pi’s performance.

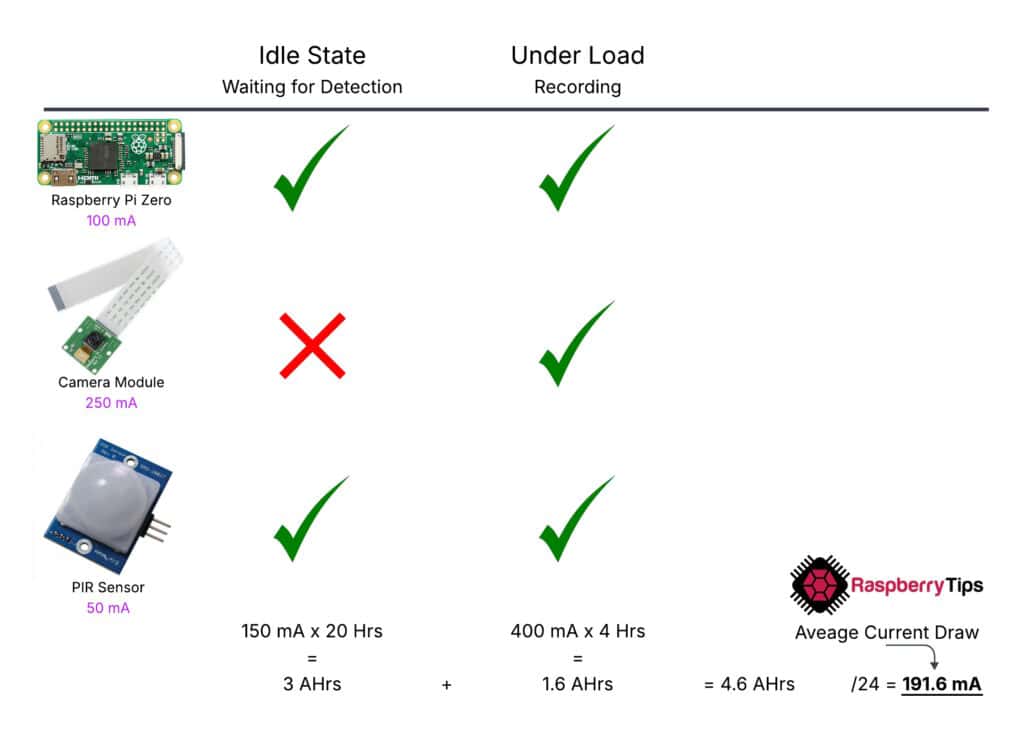

To calculate the actual or real current draw of the system, you can do some bench testing. You can use a bench power supply or an ammeter to calculate the current draw of your system. Alternatively, you can use this USB ammeter to power your Raspberry Pi and measure the actual current draw.

The best practice for evaluating current draw is to divide your Raspberry Pi’s workflow into sections. Subsequently, calculate the current draw for each portion independently using the methods mentioned above.

Now estimate the proportion of time your system will spend in each section, multiply it by the current draw for each section, and add all the products to calculate the total Amp-Hours (AHrs) of your system.

You can divide this by the total time (e.g., 24 Hrs) to calculate the average current draw of your system.

Calculating the power requirements of your project might seem daunting at first, but it is a critical step that will significantly assist in the following steps. Also, once you get the hang of it, it will quickly become part of your muscle memory.

Want even more ideas? I put together a free resource with over 75 Raspberry Pi project ideas, each with a quick description, tutorial link, and hardware requirements. Whether you’re just starting out or looking for something to do this weekend, this list will keep you busy for a while. Just click here to get instant access.

Step 3: Selecting the Power System

Now that we have a good understanding of the power requirements of our project, we can proceed to select the most appropriate power method for our system.

Let me go over a couple of good options that you can choose from here.

Power Bank

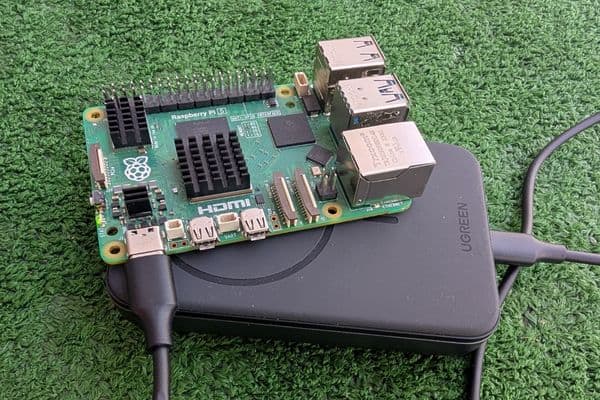

The easiest method to set up is to power your Raspberry Pi through a power bank. Several good power banks are available at reasonable prices. The only thing we need to ensure is that the power bank provides sufficient wattage for our project.

Try to get a power bank that provides at least the recommended current for your Raspberry Pi model. For example, if you are using a Raspberry Pi 5, you should get a power bank that can provide at least 25W (5V x 5A).

I found this power bank that can provide up to 100W charging through a USB-C cable.

Another key specification to consider for your power bank is its capacity. Capacity is commonly measured in Ampere-Hours (Ah) or milli-Ampere-Hours (mAh), and it indicates how long our power bank can power the load before it needs to be recharged.

For example, if we have a power bank with a capacity of 25,000 mAh and our project draws an average of 192 mA, then 25,000/192 = 130.2 hrs, i.e., our power bank will be able to power our project for approximately 130.2 hrs.

However, power bank manufacturers often round off their actual capacities, and it is also very common for power banks to be marketed with a misleadingly high capacity.

Because of this, plus the inefficiencies/power loss in the system, I always recommend getting a power bank from a reputable brand. And even then, divide its marketed capacity by half to get a better estimate of the actual performance you will get from it.

For example, in our previous case, I would divide the capacity by 2, i.e., 130.2 hrs/2 = 65 hrs. And I would plan my project with the consideration that the power bank will need to be charged approximately every 2.5 to 3 days of use.

Battery Power Circuit

If you are a bit more technically adept, I would recommend creating your own battery-powered circuit. Creating your own circuit will enable you to tailor it according to your requirements and will also help us in the next step.

To create your own battery power circuit, you only need to make a handful of choices.

First, we need to decide what type of battery to use for our setup.

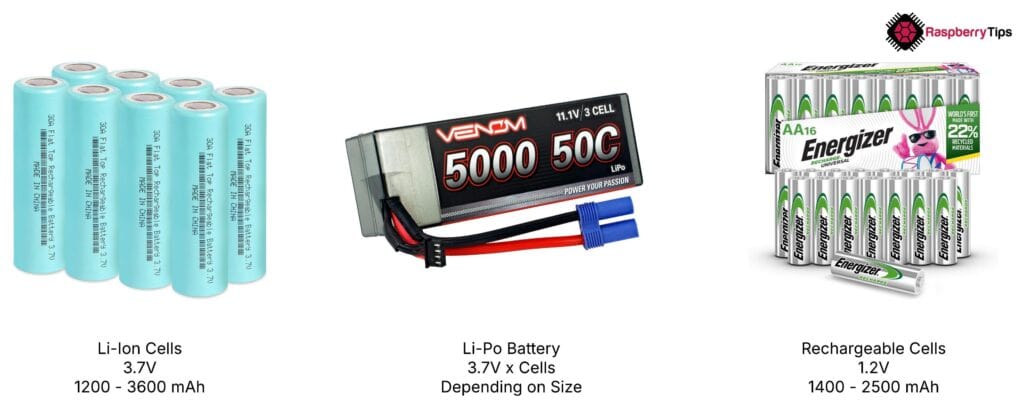

There are a few choices available:

• Li-Ion Cells – These are small cylindrical cells that provide 3.7V each. You can combine multiple cells in series or parallel to adjust the current and voltage rating. The typical capacity of a single cell ranges from 1200 mAh to 3600 mAh.

• Li-Polymer Batteries – These are small battery packs available in a wide range of shapes and sizes. They come in different configurations, such as 1S, 2S, 3S, etc. The number behind the S represents how many cells are connected in series inside the battery pack.

  To get the battery’s voltage, multiply 3.7 by this number; for example, a 3S battery pack will output 3.7 × 3 = 11.1V. These are available in a wide range of capacities as well (depending on the size of the battery).

• Rechargeable Cells – These are commonly available AA cells. These provide a 1.2V output and have capacities ranging from 1400 mAh to 2500 mAh. Similar to Li-Ion cells, these are typically combined to adjust the battery’s capacity and voltage. The key advantage of these cells is that they can easily be replaced with any other AA cells.

Each of these options is equally good. I personally prefer Li-Polymer batteries, as they offer the best capacity-to-size ratio. However, rechargeable cells have the added advantage that you can later replace them with simple AA cells without having to recharge them repeatedly.

Once you have figured out which type of battery you will use, the rest of the circuit is simple.
You only need the following additional components:

• Battery Management System (BMS) – A BMS is a small electronic circuit that protects your battery from overcurrent and undervoltage. This is a key component if you are using a Li-Ion or Li-Po-based battery, as these batteries can deliver overcurrent, resulting in damage to the battery itself and the potential for thermal runaway (fire).

  Therefore, it is a must-have for these types of batteries; you can skip this if you are using a simpler AA Rechargeable Cell. BMS circuits are relatively cheap and available in several configurations (e.g., 1S, 2S, 3S, etc.). For example, I found this BMS circuit for 1S setups, as well as this one for 3S setups.

• Buck/Boost Converter – The output voltage of your Battery + BMS will never be exactly 5V. It will either be lower than or greater than 5V. However, Raspberry Pi takes power in at 5V.

  Therefore, to convert the output of Battery + BMS voltage to an acceptable 5V, we need to install a buck converter (to decrease the voltage) or a boost converter (to increase the voltage) to the desired level.

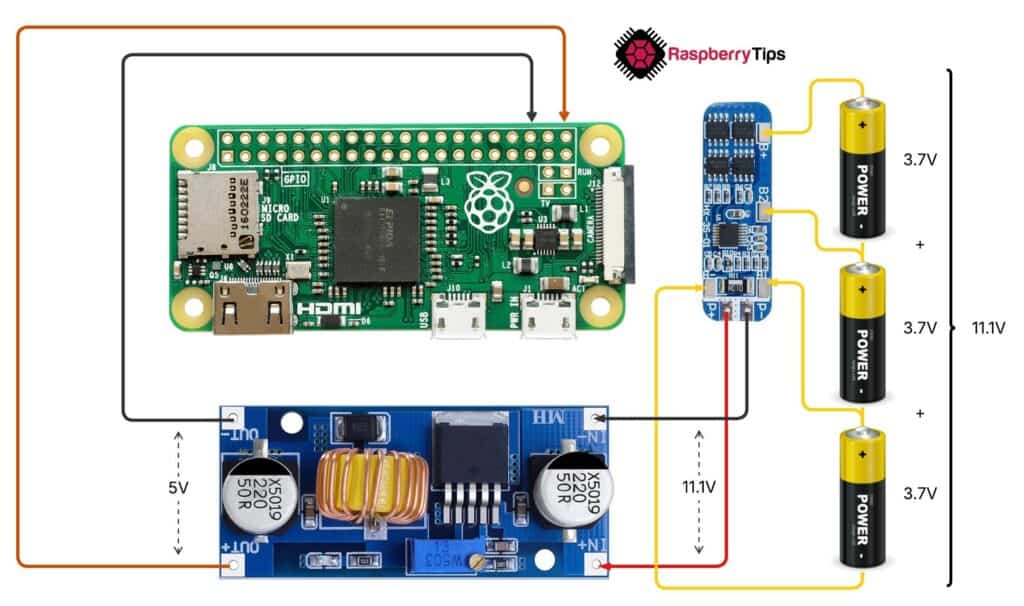

The overall circuit will look something like this:

When choosing parts for this setup, first calculate the peak current (use the recommended current for the Raspberry Pi model you are using) and ensure none of the components you select are lower-rated than that.

The lowest-rated component will automatically become the bottleneck and define the overall current capacity of your setup.

Also, for capacity calculations, you can use the same procedure that I showed for power banks. However, since you are creating your own power bank, you can be a bit more confident in the capacity rating of this setup.

UPS HATs

If you like the freedom of creating your own power bank and customization, but think building your own battery-powered circuit is too technical, you can also choose to power your Raspberry Pi with a prebuilt HAT.

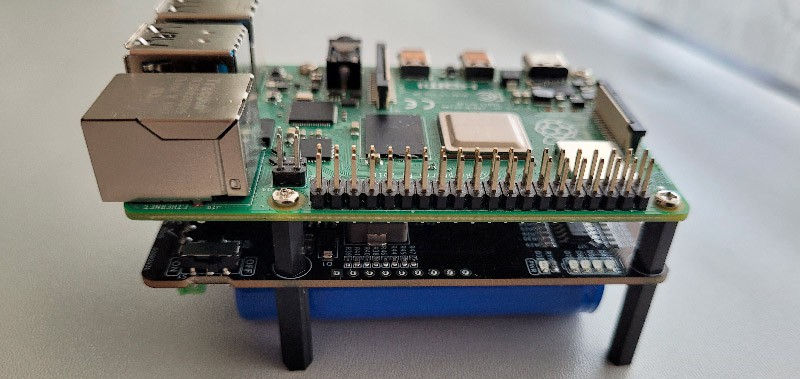

I found this UPS HAT for Raspberry Pi made by GeekPi. You can assemble it and get an integrated UPS for your Raspberry Pi. SunFounder had a similar product I tested on RaspberryTips, but it’s no longer available (picture below).

You can attach up to four 2S 18650 batteries to this HAT. This roughly translates to 24,000 mAh of battery capacity (depending upon the capacity of your 18650 cells).

No matter which method you choose, you can estimate the average runtime of your Raspberry Pi based on your battery/cell capacity and the calculation we used in the power bank section.

Personally, I would recommend a UPS HAT for beginners and making your own battery power circuit for advanced users. A power bank-based setup, on the other hand, can be suitable for prototyping or testing your project before you invest in a proper power supply solution.

Step 4: Adding Solar Power for Fully Off-Grid Operation

Now that we have figured out how we will power our Raspberry Pi, for how long can we keep it powered up? The next logical question is what happens when the batteries get discharged?

The most obvious answer is to switch off the system and charge it occasionally, or keep two sets of cells/batteries: one set charges while the other is used, and you can replace them occasionally.

However, both solutions seem cumbersome and need manual intervention. What if we wanted to make a completely autonomous off-grid setup?

The most common solution for this type of setup is to use solar panels to charge your batteries. The basic concept is straightforward: you need a solar panel and a solar panel charge controller, and use the controller’s output to charge your UPS/battery setup.

In essence, we are just adding a solar panel and a charge controller in between our battery (Cells + BMS) and our load (Buck Converter + Raspberry Pi). Additionally, if you are using a good charge controller, you can skip BMS altogether, as most reputable brands incorporate overcurrent and under-voltage protection.

However, practically implementing such a setup includes numerous considerations. Solar panels come in a wide variety of options with different voltage and power ratings as well as form factors.

Also, there is a wide variety of charge controllers available. Matching their specifications to your requirements can be daunting.

For a small DIY project, I can recommend these small 6V, 1A solar panels and this small charge controller. You can skip the typical Buck Converter and the BMS circuit for this type of setup.

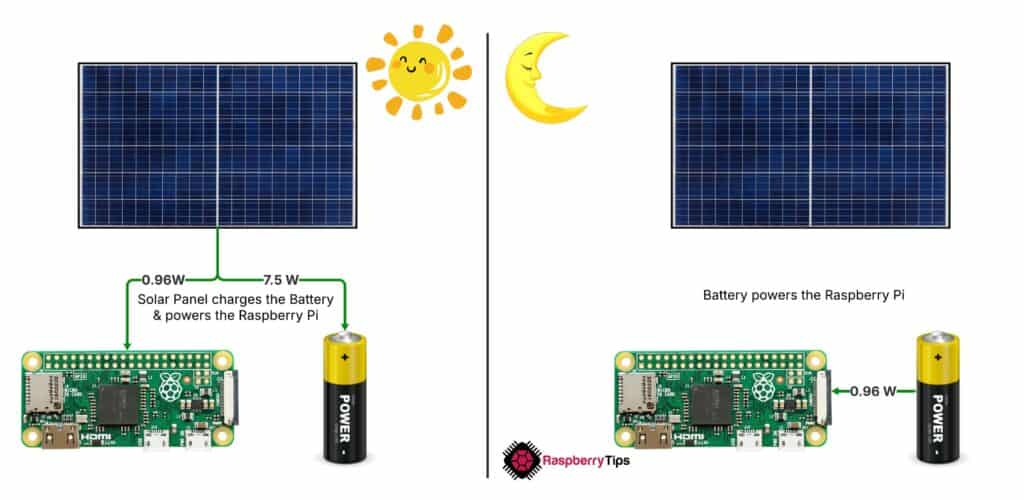

Solar Panels and Battery Capacity Calculation

One crucial calculation we need to make is how many solar panels will be required to keep our system running continuously for 24 hours without any intervention.

For this calculation, you can follow these steps:

• First, let us ascertain the average peak sun hours. This varies with location and season. We will represent it with D, and for our example, let us assume D = 8 hours.
• Next, we need to calculate the battery capacity that we will require to keep our Raspberry Pi running when the Solar Panels are not providing power (24 – D hrs). For this, we assume the average load (L) of 192 mA.
• To power a 192 mA load for 16 hours (24 – D), we need 3,072 mAh of capacity (Q = L x (24 – D)).
• Since the Depth of Discharge (DoD) for Li-Ion cells is 50% we should use at least cells with double this capacity to meet our needs. Thus, we will need at least 6,144 mAh worth of batteries.
• Let us round it up to 10,000 mAh to account for system inefficiencies.
• Now, we need to convert this from mAh to Wh. For this, we need to multiply our calculated capacity (Q) by our battery voltage (V). Since we assumed a 3S system, the battery voltage becomes 11.1V. Now, our capacity in Wh is 111 Wh (10 Ah × 11.1V).
• Next, we need to calculate the usable capacity. In our case, since DoD is 50%, the usable capacity would be 55.5 Wh (111 x 0.5).
• We also need to account for the charge-discharge efficiency of the solar setup, so let us round this value to 60 Wh (just a rough estimate). This means we need 60 Wh of charging power to meet our requirement.
• To calculate the required wattage of our Solar Panels, we can divide this value by D to obtain 7.5 W.
• In addition to charging the batteries for the night, the Solar Panels will need to power our Raspberry Pi project during the day. We can calculate the power required for our Raspberry Pi by multiplying its current/ load requirement by 5V, i.e., 0.96 W (0.192 A x 5V).
• Finally, add the earlier-calculated wattage to get the total recommended wattage for our Solar Panels: 8.46 W (7.5 + 0.96).

This rough calculation tells us that – to power our 192 mA average-load Raspberry Pi project – we will need a 10,000 mAh battery bank, and to fully charge it in the available 8 hours, we will need 8.46W of Solar Panels.

Suppose we were using these 6W Solar Panels; we would need at least 2 to power our Raspberry Pi throughout the 24-hour daily cycle.

However, the key rule of thumb that I would recommend is to always overcompensate on the power-providing side. For example, if our calculation comes out to two Solar Panels, we should instead opt for three Solar Panels to cater for any inefficiencies.

Step 5: Weatherproofing the Hardware

Now that we have figured out how we will power our Raspberry Pi, the next step is to protect our project from the elements.

The two key elements that our project needs protection from are humidity and heat. Water/humidity is the number one concern when deploying an electronic project outdoors.

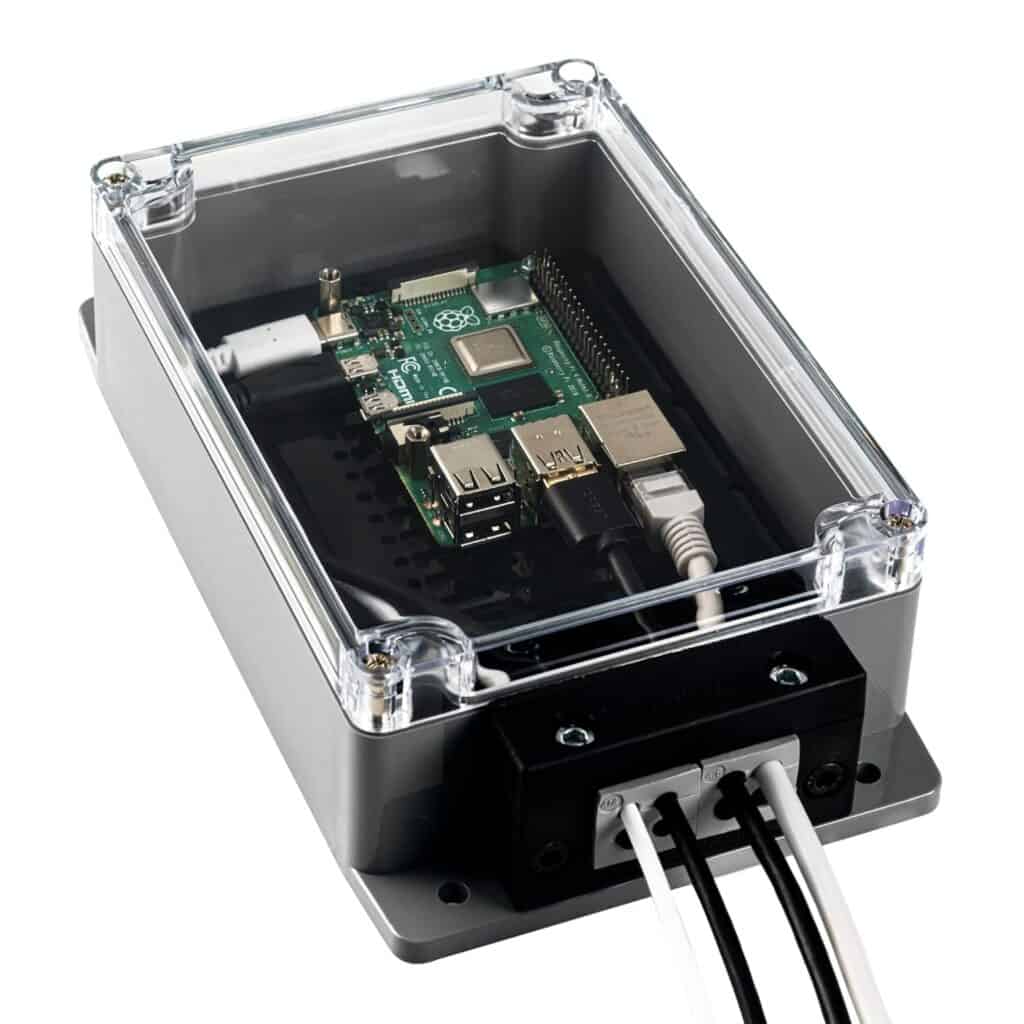

There are a couple of solutions available for this. You can either opt for a waterproof case specifically designed for the Raspberry Pi 5, like this one from Sixfab.

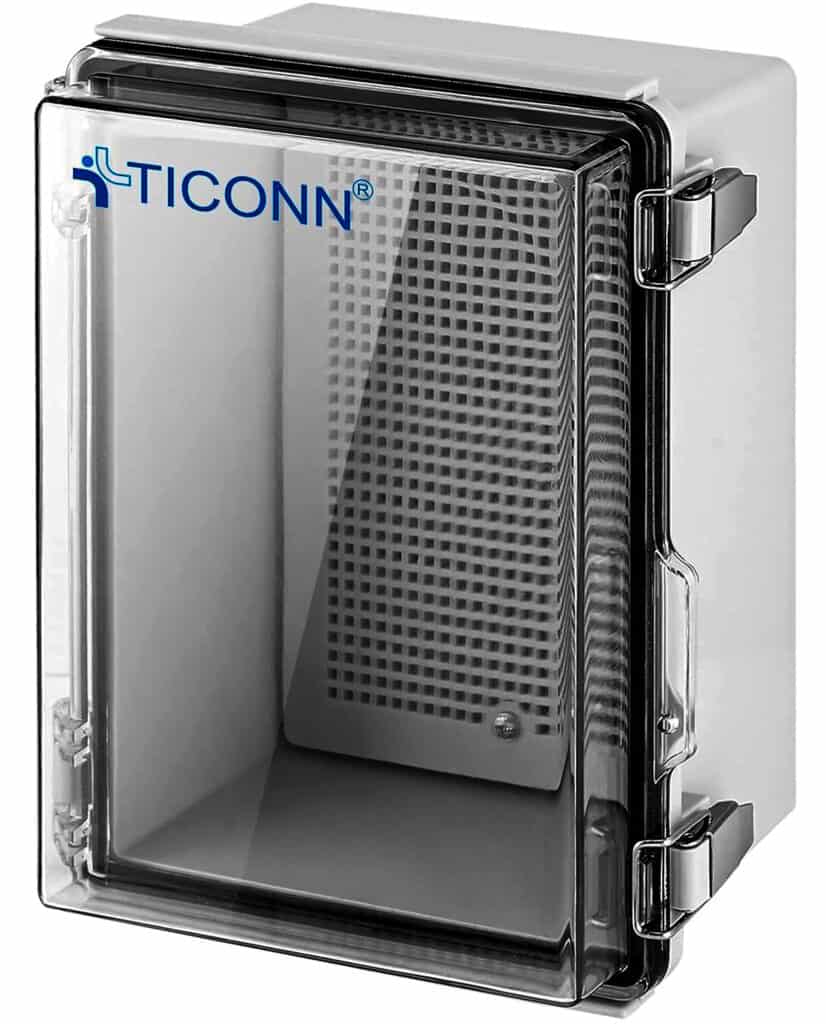

Alternatively, you can get a complete waterproof junction box container like this one on Amazon and mount all your sensitive electronics inside it.

In fact, if you have a 3D printer, you can design your own waterproof case as well.
Just make sure you use the correct type of seals for the case.

Once you have determined the correct enclosure for your project, you need to decide how to properly ventilate and cool your Raspberry Pi. Depending upon your geographical location, a proper cooling setup can be extremely important.

There are several options you can use to maintain your Raspberry Pi’s temperature within the recommended limits.

For most outdoor setups, I would recommend a heat sink combined with a ventilation fan. Also, if you live in a particularly hot climate, you will need to consider a cooling arrangement for the container where you have mounted your Raspberry Pi.

Before exposing your Raspberry Pi to the elements, it’s essential to accurately determine the enclosure and cooling arrangement. This is especially important if you want your project to be low-maintenance and function as a “set it and forget it” solution.

Step 6: Network Connectivity Options

One last thing: I think most people struggle with figuring out how to get the Raspberry Pi to communicate with us when building an off-grid setup.

If your project is to be installed within Wi-Fi or Bluetooth range, you do not need to worry about this and can use these traditional wireless communication methods.

However, if your Raspberry Pi is out of the Wi-Fi or Bluetooth range, we need to get a bit creative with our solution. Let’s go over a few options you have to overcome this.

Long Ethernet Cable Run

One of the simplest options is to run an Ethernet cable from your home to your Raspberry Pi.
You can lay an Ethernet cable for a gigabit connection up to 100 meters away.

If your project is located within this range and it is feasible to rig a wire from your home/router to your Raspberry Pi, I would recommend this option as it’s the simplest to implement. It also saves significant battery life that would have to be spent on maintaining a Wi-Fi connection.

Note: If you are using an Ethernet cable, you may also want to consider PoE (Power over Ethernet) for powering your setup. For short distances, this might be easier than the other methods we mentioned earlier.

SD Card (Sneakernet)

If rigging an Ethernet cable from your home router to your Raspberry Pi is not feasible for you, I would first advise you to jot down exactly what your Raspberry Pi needs to communicate with your home router.

If the information to be communicated is not time-sensitive, and you only need network connectivity to share the logs, you can use the internal SD Card to create the logs. You can then manually transfer these logs to your PC later when you need them.

You can also use an external USB mounted on your Raspberry Pi. Logs can be automatically written to this USB, and when you need to review them, you remove the USB and read the data (without pausing processing on your Raspberry Pi).

From my experience, only a handful of off-the-grid projects truly require real-time connectivity, and an SD Card- or USB-based logging setup suffices most of the time.

GSM HAT (Mobile)

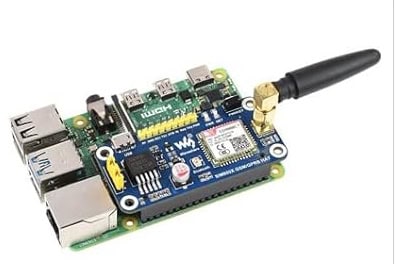

If your project is beyond the range of all of the options above, and you need real-time connectivity, you can use a GSM HAT to connect to mobile networks. There are several GSM HATs available for Raspberry Pi (like this one from Waveshare).

Using a GSM HAT will make your Raspberry Pi project truly off-the-grid. No matter where you deploy it, it will be able to communicate via SMS and any cloud service using LTE or GSM-based network connectivity.

Keep in mind, though, that such a setup would require purchasing an independent SIM for your Raspberry Pi. Furthermore, connectivity through any service provider will incur additional service charges (depending upon your location).

Additionally, some regions may implement stricter rules and requirements for SIM-based communication, so please be aware of the laws and regulations in your locality.

In the end, building an outdoor Raspberry Pi project is mainly about respect for power and the weather. If you pick the right board, size your batteries and solar with a bit of margin, and protect everything in a solid enclosure, your Pi can run for weeks or months with almost no attention.

Start small, measure what actually happens, tweak your setup, and you’ll quickly reach that “set it and forget it” off-grid sweet spot.
