Getting Started with GPIO Pins on Raspberry Pi (Beginners guide)

GPIO pins on Raspberry Pi are a main feature you need to know.
As I’m a Linux administrator, I mainly used the Raspberry Pi for testing systems and software in the first months. But to go further and create your own electronic systems and programs, you need to learn how to use them.

GPIO pins allow adding extensions to your Raspberry Pi, whether with HATs or to create circuits. The easiest way to use them is to create Python scripts, but Scratch or other software are good options to consider.

In this beginner guide, I’ll really start with the basics, for people who never tried GPIO pins. If you already made some tests, you can use the content table below to get directly to the paragraph you want to read.

You’ll need a few items to complete this tutorial. If you don’t have anything yet, please check this great kit from Sunfounder. This might be a bit too much for this tutorial, but it’s worth it on the long run, as you won’t need anything else for your first few projects.

GPIO Basics

Let’s start with the basics about GPIO.

What are GPIO Pins?

GPIO stands for General Purpose Input/Output.
It’s the 40 pins you can see on the Raspberry Pi, near the edge:

raspberry pi gpio

The goal of the GPIO Pins is to add some extensions to your Raspberry Pi.
For example, most of the Raspberry Pi HATs use these pins to connect with the Raspberry Pi (you can find here my Raspberry Pi HATs recommendations if you want to try one).
You can also create your electronic circuit by using these GPIO pins with cables, LED, and other accessories. We’ll see that later.

GPIO Pinout

As you may have guessed, each pin has a specific role, and you can use it only for that role.
Some of them are input/output, power (3.3V or 5V), or ground.
There are even more complex things we’ll see later.
So, it’s important to know what is what.

I have a complete guide on the GPIO pinout here that you can check for more details.
Here is an illustration to move quickly:

raspberry pi pinout

The website is useful for this.
It gives you the exact layout and role of each pin.
I also have a dedicated article to the Raspberry Pi Pico pinout if you are using this model.

If you don’t have it with your breadboard or GPIO kit, I recommend printing this image to use it later.

Grab my Python cheat sheet!
If like me, you always mix the languages syntax, download my cheat sheet for Python here!
Download now

Raspberry Pi Configuration

Before starting with the GPIO pins practice, we need to do a few steps on the Raspberry Pi to make sure that everything is ready:

  • Start by updating your system
    sudo apt update
    sudo apt upgrade
  • Install the rpi.gpio package (it should be pre-installed on most versions)
    sudo apt install python3-rpi.gpio
  • Enable I2C and SPI in raspi-config
    You don’t need them in this tutorial, so you can skip this step.
    But if you go further after this one it may save you time, as nobody explains this 🙂
    sudo raspi-config

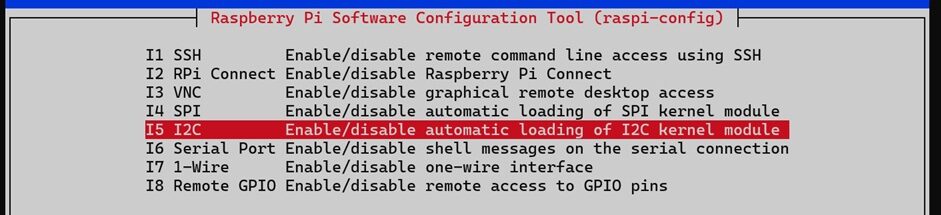

    Go into “Interface Options”.
    And enable I2C and SPI in each submenu.

I2C and SPI pins are specific GPIO pins.
You may need them with some hardware modules that need them (a screen like this one for example).

Are you a bit lost in the Linux command line? Check this article first for the most important commands to remember and a free downloadable cheat sheet so you can have the commands at your fingertips.

Required Hardware

Here is the recommended hardware you need to have to follow the rest of this tutorial (Amazon links):

Join Our Community!

Connect, learn, and grow with other Raspberry Pi enthusiasts. Support RaspberryTips and enjoy an ad-free reading experience. Get exclusive monthly video tutorials and many other benefits.

Learn more

These components will be useful for many projects later, it’s a long list of things you need to get started, but you’ll use them every time after that 🙂

That’s it, once you have everything ready, you can move to the next part.

Breadboard Basics

Let’s start with the breadboard.
If it’s your first time with it, you may have a hard time understanding how it works.

Breadboard Installation

If you are using the breadboard kit I recommended above, the first step is to install it in the blue plastic case.
Generally, you have to stick it in the large space and screw the Raspberry Pi to the corresponding location.

At this point, your setup should look like this:

raspberry pi breadboard installation

Don’t plug in the Raspberry Pi power cable for the moment.

Breadboard Schema

Before going further, you need to understand how a breadboard works.
Each hole is a pin you can use to plug something.

Power Input

On the edges of the board, there are two lines:

  • The red line is for the power input
  • The blue line is for the ground

Each port is connected with all the pins from the same line.

Attention, with some breadboards (like mine), there is a separation in the middle, you can see a gap in the red line for example.
If you plug near port 0, it will not work near port 50.

Grab my Python cheat sheet!
If like me, you always mix the languages syntax, download my cheat sheet for Python here!
Download now

Other Ports

The other ports are used for everything else (LEDs, resistors, other modules).
A wire connects them in columns.
If you take one number on the board, it connects each port from the same column with the others.


It will be clearer with this picture:

breadboard schema

I have squared each connected ports.

The red square corresponds to a power input line.
There are four lines of this type on the board.
If you input power in one of the squared ports, you can use it from any other highlighted ports.

For the ground ports, it’s the same thing (blue square).

And for the other ports, you can see the green square how they are connected together.
It’s the same for each column, for both side of the middle line.

If needed, here is a complete schema:

breadboard schema
Download Your Essential Linux Commands Guide!
It's a free PDF guide containing every Raspberry Pi Linux command you should know!
Download now

Your First Circuit: Blink the LED!

Ok, that’s the end of the theory part, and the beginning of your first circuit tutorial.
Let’s practice 🙂

Breadboard Configuration

As always, start to plug the pins without a power source plugged.

To get started you need:

  • 1x LED
  • 2x male/female jumper wires
  • 1x resistor

Take the two jumper wires and plug them like this:

  • One from the ground line to a ground pin of the Raspberry Pi (for example, the third one from the second row, port 6)
  • The other from an input/output port (for example, the fourth one of the first row, port 7)
gpio pins

You now have two cables, connected to only one side.
On the other side, you need to connect them to the breadboard.

Plug the ground jumper wire to the ground line of the breadboard (any port).
Plug the other cable into one column of the breadboard (anywhere).

It should look like this:

breadboard wires

Finally, put the resistor between the ground line and the column near the other cable.
And put a light with one foot on each column, the shorter in the resistor/ground column.

Something like this:

breadboard led

Yes, I know my resistor seems to be having a hard time 🙂

You can now boot the Raspberry Pi and jump into SSH (or GUI if you prefer) to create the Python script.
As soon as the Raspberry Pi is on, avoid touching the circuit.

Python script

The first basic script we can code is to turn on the LED light to check that everything works.
To do this, Raspberry Pi OS already includes any libraries you need.

  • In a terminal, or with your favorite code editor, create a new python file:
  • Paste these lines inside:
    #import libraries
    import RPi.GPIO as GPIO
    import time

    #GPIO Basic initialization

    #Use a variable for the Pin to use
    #If you followed my pictures, it's port 7 => BCM 4
    led = 4
    #Initialize your pin

    #Turn on the LED
    print("LED on")

    #Wait 5s

    #Turn off the LED
    print("LED off")

    I commented on everything so it should be clear.
    The only trap is the pin number to use in the LED variable.
    You may have a different numeration in your breadboard expansion board or sticker, but you have to use the BCM number from

  • Save and Exit (CTRL+X)
  • Run the script with:

The LED will turn on for 5 seconds and then turn off.
If not, double-check every previous paragraph to see what you have missed.
If your circuit seems good, check the LED direction, there is a + and – side.

By the way, if you are new to Python scripts, you must probably check this article first. I also have a complete e-book about Python on Raspberry Pi, that explain everything from scratch to mastery. I highly recommend using it if you are serious about learning Python and Raspberry Pi.

Download Your Essential Linux Commands Guide!
It's a free PDF guide containing every Raspberry Pi Linux command you should know!
Download now

🛠 This tutorial doesn't work anymore? Report the issue here, so that I can update it!

Want to chat with other Raspberry Pi enthusiasts? Join the community, share your current projects and ask for help directly in the forums.


That’s it, you now have learned the basics about GPIO pins and breadboard.
You’re able to build basic circuits, and you’re ready for the next level 🙂
